Here are some examples of the plumbing and connections between the filtration unit and the tank.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
For the Evo and Orb you should layout the Durasound tiles as shown in the image below for your pod style.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
The following are the dimensions and diagrams for the Standard Filtration System.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
The following are the dimensions and diagrams for the Slimline Filtration System.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
Attached below is the Orb Vibration Isolation Pad DXF file which is the cut file for a under tank surface board for weight distribution. Typically 1/2" or 3/4" King Starboard is used between the tank and vibration pads.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
The following is the documentation for installing the 45MP3 Auto-doser on the unity filtration system.
The pump runs at 1/3 ounce of liquid at 10 seconds of operation. 22GDP / 83.3 LPD
Make sure that the rollers on the dosing pump are extended, please refer to the following video for instructions. If the rollers are not extended, the system may draw H2O2 into the water during the filtration cycle while the ball valve is open during ozone injection, which typically lasts for 5 minutes.
The following section addresses chlorine balancing with the auto-doser
This is required as per Florida and other state regulations.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
This is the guide for assembly and installation of the Quest Float Suites
You can download the PDF at the bottom of this article or reference the following images:
QFS Installation Documentation
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.

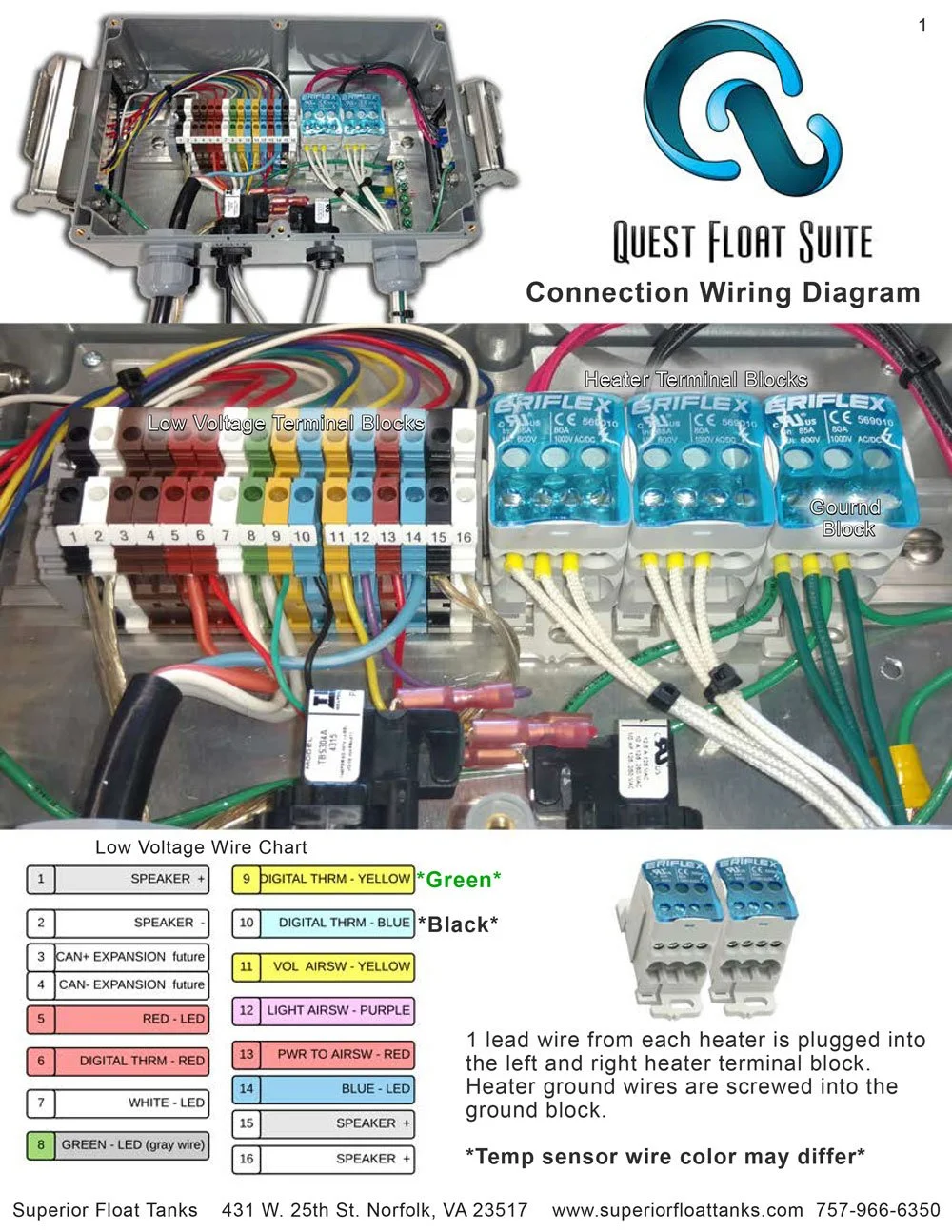

These are the pictures of the Quest Float Suite electrical connection box.
Versions of the connection box have pre-installed connectors for the temp sensor, light, and speakers.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
Below is the graphic for the Mason anti-vibration pad layout.
Each pad sheet contains 91 2"x2" pads which are spaced 6" apart from each other.
To more easily align the pads it is suggested to use blue painters tape to create the grid on the floor and then place the pads. Once the pads are placed on the floor a wood or starboard sheeting would be placed on top of the pads to more evenly distribute the pressure on the bottom of the tank.
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
This is the gas bleeder instructions used for the Orb and Evolution Float Pod`s gas spring arms.
The instructions must be followed step by step to not over-bleed gas from the springs. WARNING: Overbleeding the gas spring can require it to be sent back to the manufacturer to be repressurized
The following is a video that overviews decreasing the pressure of the gas springs with the bleeder gauge.
Make sure to keep the bleeder gauge in its protective box when not in use.
PDF Link : Gas Spring Bleeder
Our support team can help with anything this article doesn't cover. Contact Superior Float Tanks support.
